Shelby 427 FE Aluminum Head - Completed (Pair)

  • Sale
  • Regular price $3,198.00

Shelby Aluminum FE Heads are cast from A-356 aluminum, heat treated to T6 hardness level and precision CNC machined.  Patterned on Ford's famous 427 FE medium-raiser cast iron heads, Shelby FE heads offer leading edge air flow improvements, starting with standard 2.250-inch intake and 1.750-inch exhaust valve diameters.

Due to valve size, the heads are suitable only for Shelby 427 Alloy FE or factory 427 cast iron blocks.  These heads utilize 14mm diameter, 3/4-inch reach, gasketed spark plugs positioned in the stock location.   They are sold in pairs, complete or bare.

A revised design with the valve locations moved, these heads will require custom pistons.

 Bare Heads:

  • Head Material – A-356, T6 Aluminum
  • Valve Diameters – 2.250-inch intake; 1.750-inch exhaust

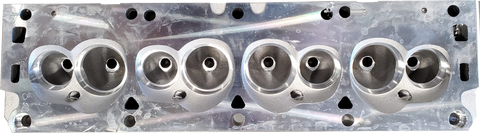

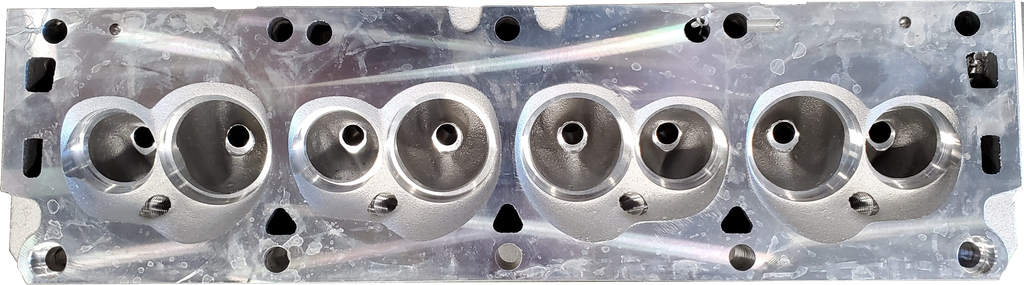

  • Combustion Chamber – Approx. 63cc as cast
  • Valve Guides – 0.345-inch; manganese bronze material

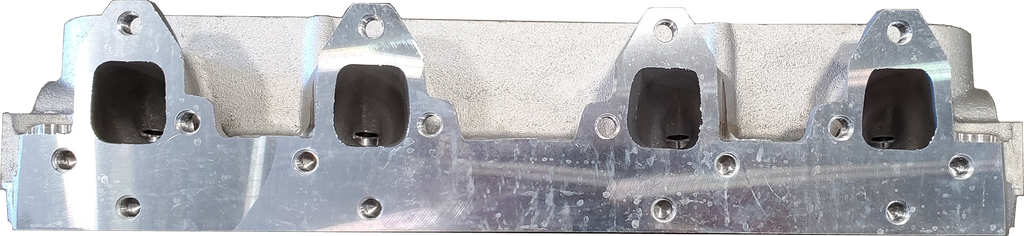

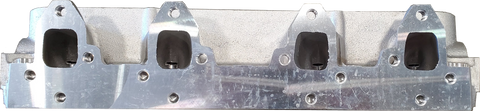

  • Exhaust port bolt – 16 bolt pattern
  • Air Flow, Intake – 310cfm @ 28-inch H2O
  • Air Flow, Exhaust – 210cfm @ 28-inch H2O
  • Intake Port Volume – 195cc
  • Exhaust Port Volume –135cc

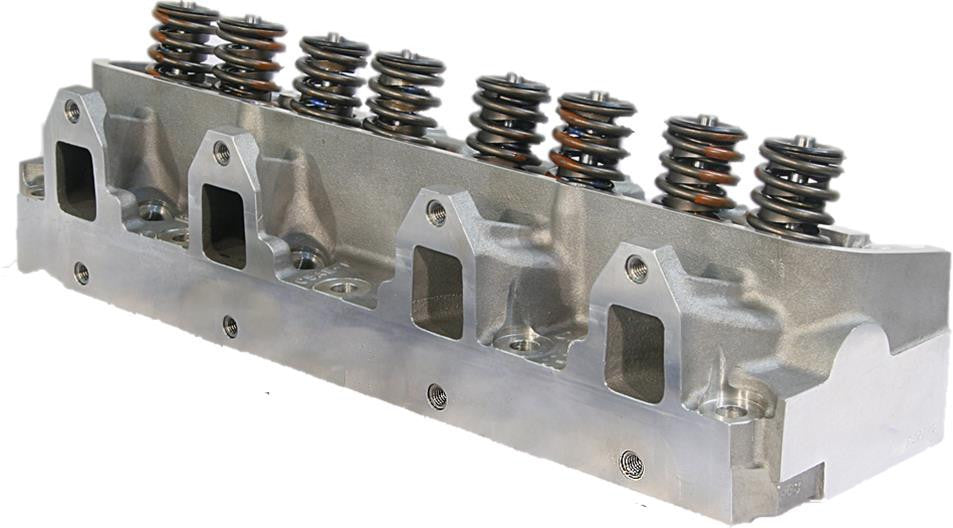

Complete Heads Include:

  • Valves – Premium 1-piece stainless steel, swirl polished w/undercut 11/32 stems
  • Valve Stem Seal Type – Viton, positive seal
  • Valve Springs – High Silicon Dual Springs w/Damper
  • Valve Retainers – Chrome moly steel
  • Valve Locks – machined
